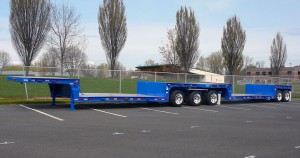

Double Drop A & B Train

  • Length: 40′
  • Width: 102″
  • Deck: 32′ 6″ Overall
  • King Pin Location: 12″
  • Rear Axle Location: 25 1/2″
  • Axle Spread: 9′ 8″ Good for 43,500 lbs.
  • GAWR: 25,000 lbs. each
  • GVWR: 65,000 lbs.
  • Ship Weight: 11,020 lbs.

Specifications

Main Frame and Tongue

Formed I-beams made from high yield structural steel.

Formed Channel

3/16” & 1/4”

King Pin

2” X 3/8” bolster on 1/4” 5th wheel plate.

Landing Gear

Holland 2 speed.

Twist Locks

Buffers #3960.

Suspension

Hutch spring suspension, Ridewell Ridelite air ride optional.

Drop Axle

Ridewell 232 HMT optional.

Axles

77.5” or 71.5” Track, 1/2″ or 5/8” wall, steel hub pilot hubs, cast drums, ”Q” series 16.5” X 7” brake shoes, 30-30 spring brake chambers, auto slack adjusters.

Wheels

22.5 X 8.25 steel powder coated, Aluminum optional.

Tires

255/70R22.5, 295/75R22.5, 385/65R22.5, 445/50R22.5.

Brake System

Meritor/WABCO 2S2M premium ABS system.

Electrical

JKD 7 wire sealed harness, sealed ABS wire harness.

Lights

4” JKD LED tail lights, 2” JKD led beehive maker lights, mid trailer oval turn signal, DOT approved 1 1/2” & 2” conspicuity tape.

Metal Prep

Sand Blast

Primer

PPG 2 Part epoxy 400,401.

Paint

Polyurethane top coat black in color, other colors optional.

Mud Flaps

Dionbilt 30”.

Optional Decal Package

with Tailer Numbers and Tare Weight.
