DBN-3400
DBN-3400

Four Axle Feather Weight Chassis

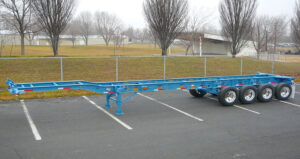

DBN-3400 Four Axle Feather Weight Chassis.

  • Length: 41′
  • Width: 96″
  • King Pin Location: 12″
  • Rear Axle Location: 24″
  • Axle Spread: 128″
  • Landing Gear Location: 150″
  • GVWR: 96,000 lbs.

Specifications

Main Frame

14″ Manufactured High Yield Structural Steel. 3/16” & ¼” Formed Channel.

Tongue

Formed in with Main Frame.

King Pin

2” X 3/8” Bolster on 1/4″ Plate.

Twist Locks

Penz #PEN-90-35RH Non Retractable.

Suspension

Huchins 9700 Series Three Axle 42.5″ Spread, Single Leaf.

Axles

71.5″ Track, 5/8″ Wall, Dura Light Hub Pilot Hubs, Centrifuge Drums, “Q” Series 16.5″ x 7″ Brake Shoes, 30-30 Spring Brake Chambers, Auto Slack Adjusters.

Wheels

22.5″ X 8.25″ Aluminum.

Tires

295/65R 22.5.

Brake System

Meritor Wabco 2S2M Premium ABS System.

Electrical

JKD 7 Wire Sealed Harness, Sealco Sealed ABS Harness.

Lights

4″ JKD (9) LED Tail Lights, 2″ LED JKD Bee Hive Marker Lights, D.O.T. Approved 1 1/2″ & 2″ Conspicuity Tape.

Primer

PPG HBE 400&401 Epoxy.

Paint

Polyurethane Factory Pack Black.

Mud Flaps

DionBilt.
